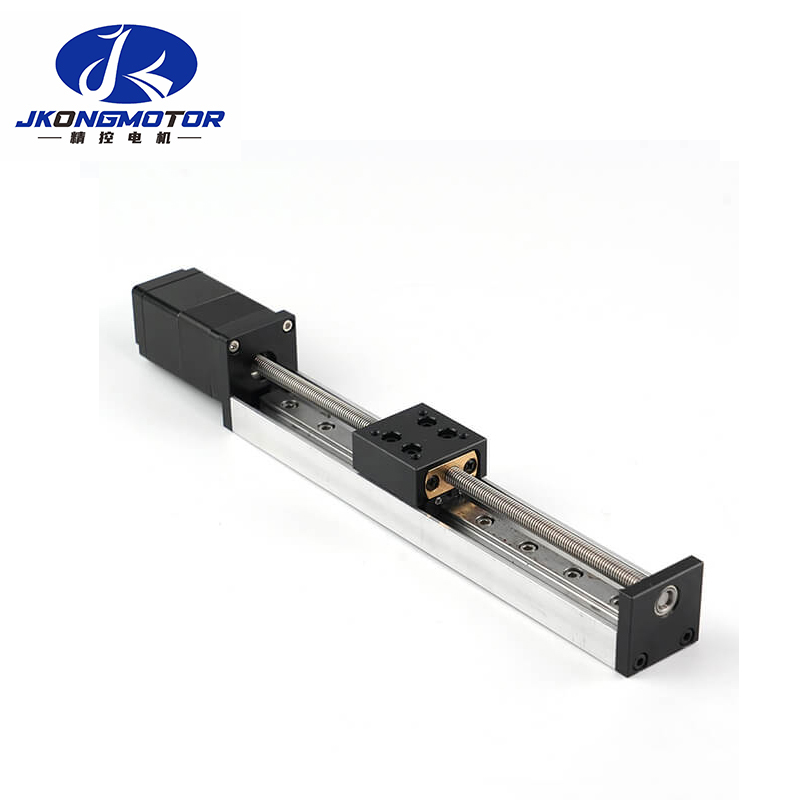

Jkongmotor Nema 17 ISC42 Accurate Linear Motion System Linear Stepper Motor With Integrated Driver for Chip Mounting Actuator
Product Description:
A motor with a controller or a driver, and an encoder, is an integrated motor. Integrated motors save wiring between the motor, controller and the control cabinet. By minimizing the machine complexity and installation efforts, the overall system cost is reduced
Characteristics of Integrated Dc Servo Motor
1. Compact: Integrated design of integrated drive motor Easy installation, small footprint, and simple wiring.
2. Multiple motion control modes: Supports the CiA402 standard protocol, including Relative position mode, absolute position mode, speed Mode, torque mode, and origin regression mode.
3. low-power consumption: Adopting low internal resistance MOS to ensure motor performance Excellent torque utilization while reducing motor power consumption And heat generation, effectively extending the service life of
the motor.
4. control mode: Supports pulse/RS485/CANopen.
5. Multi segment position speed function: With multi segment position function and multi segment speed function.
6. Safe and reliable: Driver built-in in place and alarm output signal Convenient for upper computer detection and control built-in Multiple alarm functions such as over differential, over undervoltage, and over temperature Can ensure the safe operation of processing equipment.
Model naming rules for low voltage integrated dc servo motor
| ① Name |
JK: Changzhou Jkongmotor |
⑦ Brake (Optional) |
B1: 24V Brake |
| ② Integrated Stepper Motor Series |
ISP: Waterproof Type |
B2: 48V Brake |
| ISC: Plug Type |
⑧ Shaft Type |
None: Standard Output Shaft |
| ③ Motor Frame |
28=28mm |
01: Special Output Shaft |
| 42=42mm |
⑨ Leading Wire Type |
Y: Crimping Shell |
| 57=57mm |
H: Aviation Plug |
| 60=60mm |
M:PG Gland |
| 86=86mm |
⑩ Number of Leading Wires |
Crimping Shell: 3=Power supply + communication + I/O |
| ④ Control Type |
P: Pulse |
Crimping Shell: 4=Power supply + 2 x communication + I/O |
| R: RS485 |
Aviation Plug: 2=Power supply + communication |
| C: CANopen |
Aviation Plug: 4=Power supply + 2 x communication + I/O |
| ⑤ Motor Length |
0.3m / 1m / Customized |
PG Gland: 2=Power supply + communication |
| ⑥ Encoder Type |
A1: 17bit single turn absolute encoder |
PG Gland: 4=Power supply + 2 x communication + I/O |
| A2: 17bit multi turn absolute encoder |
⑪ Gearbox (Optional) |
G: Planetary Gearbox |
| A3: 15bit single turn absolute encoder |
RG: Right-angle Planetary Gearbox |
| A4: 15bit multi turn absolute encoder |
WG: Worm Gearbox |
| ⑫ Gear Ratio of the Reducer |
03-1:3; 05-1:5; 10-1:10; 20-1:20... |
Jkongmotor has a wide range of micro motor production lines in the industry, including Stepper Motor, DC Servo Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Planetary Gearbox etc. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations.
Features:
1. Adopting a new 32-bit M4+core with 120M or 240M main frequency
2. Stable torque characteristics from low to high speeds, with high speed and precision
3. Equipped with brake resistor interface to prevent damage to the electromechanical braking system
4. Wide speed range, low temperature rise, and high efficiency
5. Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor
6. Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions
7. Configure a 17bit single turn absolute encoder
Communication method:
1. Pulse type
2. RS485 MOdbus RTU network type
3. CANopen network type
Protection level:
Waterproof type: IP30, IP54, IP65, optional
Usage:
Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese
medicine ingredient industry, etc

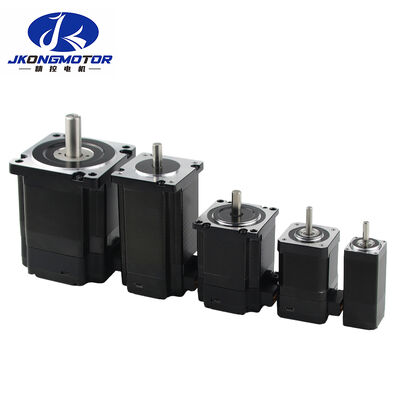

ISC28 Series Nema 11 28mm Pulse RS485 CANopen Integrated Stepper Servo Motor:
| Series |
V2 Series |
Control method (optional) |
Step Angle |
Phase Current |
Phase Resistance |
Phase Inductance |
Rated Torque |
Body Length |
Weight |
Insulation Class |
Integrated Encoder |
| (°) |
(A) |
(Ω) |
(mH) |
(N.m) |
(mm) |
(Kg) |
/ |
/ |
| ISC28-0.065Nm |
JKISC28-P1A3 |
Pulse |
1.8 |
1 |
2.8 |
1.8 |
0.065 |
48.1 |
0.13 |
B |
1000ppr /17bit /15bit |
| JKISC28-R1A3 |
RS485 |
| JKISC28-C1A3 |
CANopen |
| ISC28-0.095Nm |
JKISC28-P2A3 |
Pulse |
1.8 |
0.67 |
6.8 |
5.5 |
0.095 |
61 |
0.17 |
B |
1000ppr /17bit /15bit |
| JKISC28-R2A3 |
RS485 |
| JKISC28-C2A3 |
CANopen |
| ISC28-0.12Nm |
JKISC28-P3A3 |
Pulse |
1.8 |
0.67 |
8.8 |
8 |
0.12 |
67 |
0.22 |
B |
1000ppr /17bit /15bit |
| JKISC28-R3A3 |
RS485 |
| JKISC28-C3A3 |
CANopen |
ISC42 Series Nema 17 42mm Pulse RS485 CANopen Integrated Stepper Servo Motor:
| Series |
V1 Series |
V2 Series |
Control method (optional) |
Step Angle |
Phase Current |
Phase Resistance |
Phase Inductance |
Rated Torque |
Body Length |
Weight |
Insulation Class |
Integrated Encoder |
| (°) |
(A) |
(Ω) |
(mH) |
(N.m) |
(mm) |
(Kg) |
/ |
/ |
| ISC42-0.26Nm |
JKISS42-P01A |
JKISC42-P1A3 |
Pulse |
1.8 |
1.33 |
1.8 |
2.5 |
0.26 |
55.4 |
0.28 |
B |
1000ppr /17bit /15bit |
| JKISS42-R01A |
JKISC42-R1A3 |
RS485 |
| JKISS42-C01A |
JKISC42-C1A3 |
CANopen |
| ISC42-0.42Nm |
JKISS42-P02A |
JKISC42-P2A3 |
Pulse |
1.8 |
1.7 |
1.2 |
2.8 |
0.42 |
61.1 |
0.34 |
B |
1000ppr /17bit /15bit |
| JKISS42-R02A |
JKISC42-R2A3 |
RS485 |
| JKISS42-C02A |
JKISC42-C2A3 |
CANopen |
| ISC42-0.5Nm |
JKISS42-P03A |
JKISC42-P3A3 |
Pulse |
1.8 |
1.68 |
1.55 |
2.8 |
0.5 |
69.9 |
0.44 |
B |
1000ppr /17bit /15bit |
| JKISS42-R03A |
JKISC42-R3A3 |
RS485 |
| JKISS42-C03A |
JKISC42-C3A3 |
CANopen |
| ISC42-0.73N.m |
JKISS42-P04A |
JKISC42-P4A3 |
Pulse |
1.8 |
1.7 |
2.6 |
6.2 |
0.73 |
81.9 |
0.61 |
B |
1000ppr /17bit /15bit |
| JKISS42-R04A |
JKISC42-R4A3 |
RS485 |
| JKISS42-C04A |
JKISC42-C4A3 |
CANopen |
ISC57 Series Nema 23 57mm Pulse RS485 CANopen Integrated Stepper Servo Motor:
| Series |
V1 Series |
V2 Series |
Control method (optional) |
Step Angle |
Phase Current |
Phase Resistance |
Phase Inductance |
Rated Torque |
Body Length |
Weight |
Insulation Class |
Integrated Encoder |
| (°) |
(A) |
(Ω) |
(mH) |
(N.m) |
(mm) |
(Kg) |
/ |
/ |
| ISC57-0.55Nm |
JKISS57-P01A |
JKISC57-P1A3 |
Pulse |
1.8 |
2.8 |
0.7 |
1.4 |
0.55 |
61.5 |
0.55 |
B |
1000ppr /17bit /15bit |
| JKISS57-R01A |
JKISC57-R1A3 |
RS485 |
| JKISS57-C01A |
JKISC57-C1A3 |
CANopen |
| ISC57-1.2Nm |
JKISS57-P02A |
JKISC57-P2A3 |
Pulse |
1.8 |
2.8 |
0.9 |
3 |
1.2 |
75 |
0.8 |
B |
1000ppr /17bit /15bit |
| JKISS57-R02A |
JKISC57-R2A3 |
RS485 |
| JKISS57-C02A |
JKISC57-C2A3 |
CANopen |
| ISC57-1.89Nm |
JKISS57-P03A |
JKISC57-P3A3 |
Pulse |
1.8 |
2.8 |
1.1 |
3.6 |
1.89 |
96 |
1.2 |
B |
1000ppr /17bit /15bit |
| JKISS57-R03A |
JKISC57-R3A3 |
RS485 |
| JKISS57-C03A |
JKISC57-C3A3 |
CANopen |
| ISC57-2.2N.m |
JKISS57-P04A |
JKISC57-P4A3 |
Pulse |
1.8 |
3 |
1.4 |
4.5 |
2.2 |
102.5 |
1.3 |
B |
1000ppr /17bit /15bit |
| JKISS57-R04A |
JKISC57-R4A3 |
RS485 |
| JKISS57-C04A |
JKISC57-C4A3 |
CANopen |
| ISC57-2.8N.m |
JKISS57-P05A |
JKISC57-P5A3 |
Pulse |
1.8 |
4.2 |
0.75 |
3 |
2.8 |
116.5 |
1.6 |
B |
1000ppr /17bit /15bit |
| JKISS57-R05A |
JKISC57-R5A3 |
RS485 |
| JKISS57-C05A |
JKISC57-C5A3 |
CANopen |
| ISC57-3.0N.m |
JKISS57-P06A |
JKISC57-P6A3 |
Pulse |
1.8 |
4.2 |
0.9 |
3.8 |
3 |
132 |
1.8 |
B |
1000ppr /17bit /15bit |
| JKISS57-R06A |
JKISC57-R6A3 |
RS485 |
| JKISS57-C06A |
JKISC57-C6A3 |
CANopen |
ISC60 Series Nema 24 60mm Pulse RS485 CANopen Integrated Stepper Servo Motor:
Integrated Stepper Servo motor customized:
