| Τόπος καταγωγής: | Jiangsu, Κίνα (ηπειρωτική χώρα) |
| Μάρκα: | Jkongmotor |
| Πιστοποίηση: | CE, ROHS,ISO9001 |
| Αριθμό μοντέλου: | JK80BLS01-16IE |
| Ποσότητα παραγγελίας min: | 3-10PCS |
|---|---|
| Τιμή: | US$49~US$55 |
| Συσκευασία λεπτομέρειες: | με το χαρτοκιβώτιο εξαγωγής. μεγάλη ποσότητα με την παλέτα |
| Χρόνος παράδοσης: | Για τα δείγματα, 7-15 ημέρες/για τη batch, 15-25days |
| Όροι πληρωμής: | T/T, paypal, Western Union, L/C |
| Δυνατότητα προσφοράς: | 100000pcs/month |
| Nema: | στρογγυλή bldc μηχανή 80mm | Κράτημα της ροπής: | 0.28N.m |
|---|---|---|---|
| Μήκος μηχανών: | 91.5mm | Αριθμός φάσης: | 3phase |
| Αριθμός Πολωνών: | 8 | Εκτιμημένη τάση: | 24v |
| εκτιμημένη ταχύτητα: | 2500rpm | εκτιμημένη δύναμη: | 60w |
| Βαθμός προστασίας: | IP30 | Προστατεύστε το χαρακτηριστικό γνώρισμα: | Απόδειξη νερού |
| Υψηλό φως: | 10 αβούρτσιστη μηχανή περιστροφής/λεπτό Πολωνών η χαμηλή,μηχανή bldc 80mm αδιάβροχη,10 Πολωνοί στεγανοποιεί τη μηχανή bldc |
||
Round 80mm 60w 0.28N.m water proof brushless dc motor with integrated Controller
Product Name: Brushless DC Motor
Number of Phase: 3 Phase
Number of Poles: 4 Poles /8 Poles /10 Poles
Rated Voltage: 24v /36v /48v /310v
Rated Speed: 3000rpm /4000rpm /or customized
Rated Torque: Customized
Rated Current: Customized
Rated Power: 23w~2500W
1.Production description:
| Brand Name: | Jkongmtor | Product Name: |
Bldc motor with integrated driver |
| Model Name: | JK80BLS01-16IE | Number of Poles: | 4 |
| Resistance/ Phase: | 0.68ohms | Nominal Voltage: | 24V |
| Speed: | 2500 rpm | Current: | 0.8A |
| Rated Torque: | 0.28N.m | Rated Speed: | 1950 rpm |
| Output Power: | 60w | Torque Constant: | 0.09N.m/A |
| Back EMF constant: | 9.6v/krpm | Insulation Class: | B |
| Size: | 80x80mm | Body Length: | 91.5mm |
| Product Series | Poles No. | Rated Voltage | Rated Speed | Rated Torque | Rated Power | Motor Length |
| 42mm BLDC Motor | 8 | 24v | 4000rpm | 0.0625~0.25N.m | 26~105w | 41~100mm |
| 57mm BLDC Motor | 4 | 36v | 4000rpm | 0.055~0.44N.m | 23~184w | 37~107mm |
| 60mm BLDC Motor | 8 | 48v | 3000rpm | 0.3~1.2N.m | 94~377w | 78~120mm |
| 80mm BLDC Motor | 4 | 48v | 3000rpm | 0.35~1.4N.m | 110~440w | 78~138mm |
| 86mm BLDC Motor | 8 | 48v | 3000rpm | 0.35~2.1N.m | 110~660w | 71~138.5mm |
| 110mm BLDC Motor | 8 | 310v | 3000rpm | 1.65~6.6N.m | 518~2073w | 83~173mm |
| 130mm BLDC Motor | 10 | 310v | 3000rpm | 2.39~11.94N.m | 750~2500w | 115~190mm |
| Above only for representative products, products of special request can be made according to the customer request. | ||||||

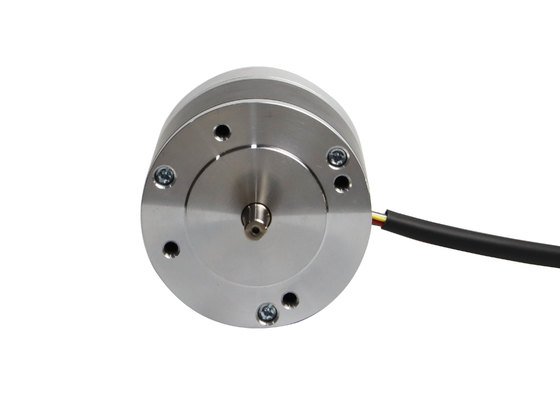

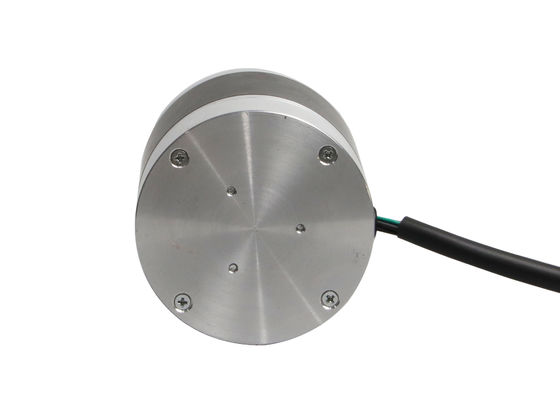

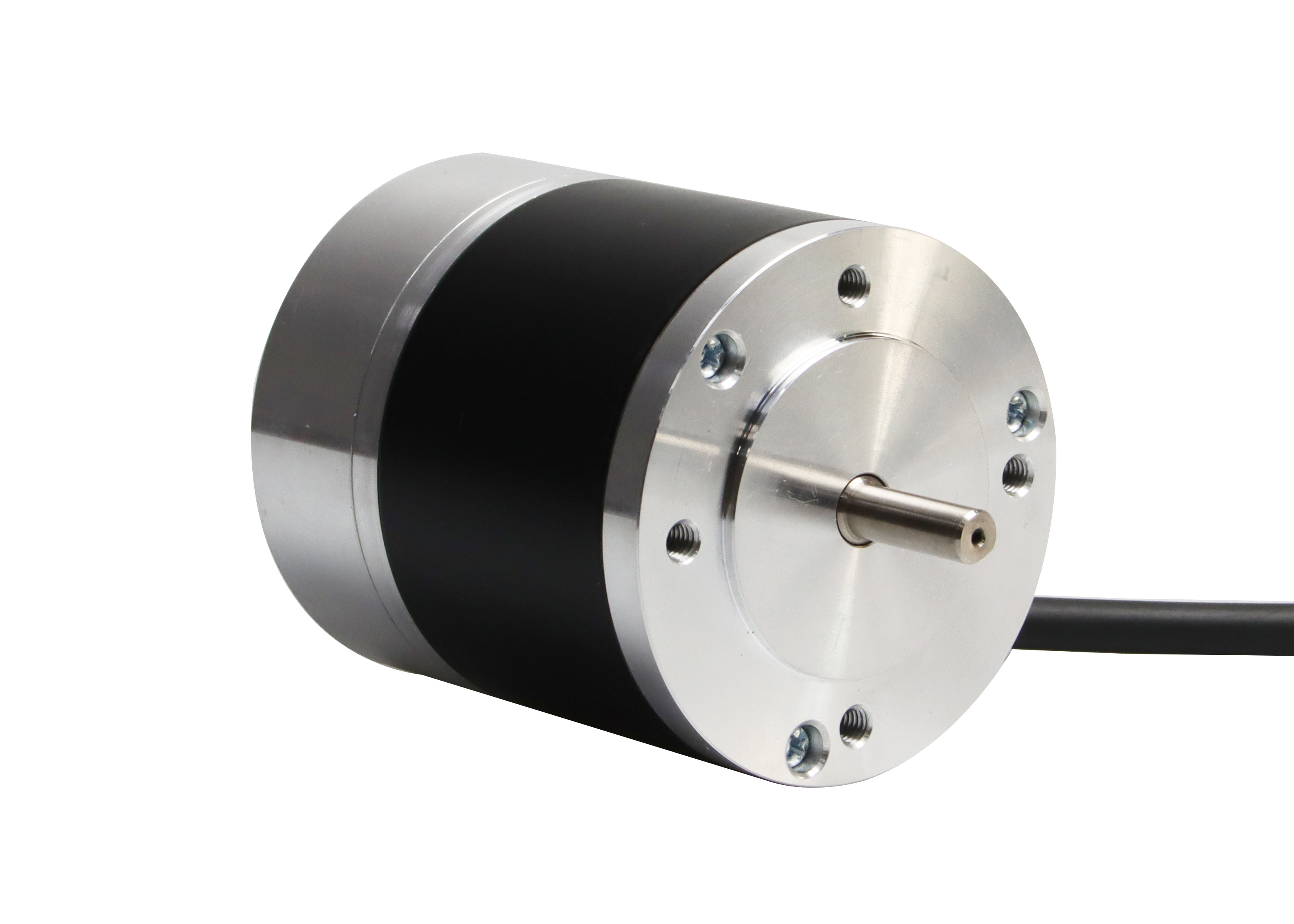

2.Product photos:
FAQ:
Q: 1. Can you make the gearbox or gearmotor with custom specifications?
A: YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
Q: 2. Do you provide the samples?
A: YES. Our company can provide the samples to you
Q:3.Do you provide technology support?
A: YES. Our company have strong R&D capability, we can provide technology support if you need.
Q: 4. why should you buy from us not from other suppliers?
A: Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
Q: 5. How to ship to us?
A: We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
Q: 6. How can I know the product is suitable for me?
A: Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
